Use hydraulic valves with integrated functions from HYDAC and save installation space, costs and weight in your machine.

With machine functions constantly increasing in complexity, especially within the mobility sector, increasingly complex components are needed that are able to combine multiple functions. This means that greater demands are being made on hydraulic valves and their functions, while cost pressure is also increasing.



HYDAC combination valves for hydraulic control blocks with their significant advantages have been developed to meet these requirements:

  • Function integration in just one component,
    as multiple valve functions are integrated into one hydraulic valve.
  • Reduced installation space and less weight in the machine
    thanks to the extremely compact solution.
  • Increased functional reliability
    thanks to reduction in potential leakages.
  • Universal use
    thanks to the use of a standard pipe connection.
  • Hydraulic valves – optimised for the applications of our customers
    We have the right combination valve for any application.



Contact us now!

HYDAC valve technology with function integration:
combination valves in compact design

HYDAC combination valve product portfolio:

Compact quick change function through combination of three valve functions

Integrates the following valve functions:

  • Separate 4/2-directional valve to initiate cylinder movement
  • Pressure reducing valve to prevent damage to the mechanical system when the locking bolt engages
  • Bypass check valve for secure release of the locking bolt

Combination valve: WKDRM08140Y

  • Conventional solution

    HYDAC combination valve with quick change function

  • Special features:

    • When de-energised, the valve produces pressure that is regulated to extend or halt the locking bolt. The pressure level can be set mechanically on the valve.
    • If the valve is energised, the entire system pressure is routed to the cylinder port on the opposite side and the locking bolt can be retracted with great force.
    • Oil flowing back out of the cylinder is freely routed to the tank. Combining the functions in a single valve provides a securely locked bolt position when the valve is de-energised and also enables a mechanically adjustable locking pressure.
    • The combination valve provides optimum pressure conditions for tool change, e.g. in telescopic handlers.

⇒ Cost- and space-saving combination valve for high levels of safety when tools are changed.

Combination valve for pressure release or shutdown of subsections of the hydraulic circuit

Integrates the following valve functions:

  • Adjustable pressure relief valve
  • Normally open (fail safe) 2/2 directional switching valve as bypass

Combination valve: DB10PY

  • Conventional solution

    HYDAC combination valve for pressure relief

  • Special features:

    • The simple application of a supply voltage is sufficient for controlling this valve.
    • Modular system for:
      • Nominal sizes from 8 to 16
      • Flow ranges from 60 to 300 l/min



    Design options:

    • With proportional control and independently adjustable maximum and minimum pressures – PDB…PY
    • With inverse characteristics and adjustable maximum pressure – PDB...PZ-31

⇒ Combination valve in extremely compact design, thus taking up less space for more available installation space and reduced weight.

Combination valve for a compact connection of a pressure-controlled circuit

Integrates the following valve functions:

  • Adjustable pressure relief valve
  • normally unloaded 3/2 way C-spool valve

Combination valve: DR08PY

  • Conventional solution

    HYDAC combination valve: DR08PY

  • Special features

    • The simple application of a supply voltage is sufficient for controlling this valve.



    Design options

    • With proportional control and independently adjustable maximum and minimum pressures – PDR…PY
    • With inverse characteristics and adjustable maximum pressure – PDR...PZ-31

⇒ Combination valve in extremely compact design, thus taking up less space for more available installation space and reduced weight.

Optimised combination valve for lifting/lowering movements of plunger cylinders without load

Integrates the following valve functions:

  • Direct acting, proportional 2/2 spoolvalve
  • Fixed-setting maximum flow controller (with individually adjustable maximum value)

Combination valve: PWK10121WS

  • Conventional solution

    HYDAC combination valve: PWK10121WS

  • Special features:

    • Integration of a constant flow controller to monitor the flow rate and limitation performed by the valve automatically when maximum value reached.
    • Since the volume flows through only one valve, Δp for lowering is reduced in comparison with conventional solutions with multiple valves, thus enabling plunger cylinders to also be lowered without a load at the desired speed.
    • Continuous Q-I curve since there is no change in the flow force between the flow controller and the proportional valve.

⇒ Combination valve for rapid, load-free lowering without additional flow controller or the use of a pressure compensator

Direct acting bypass pressure compensator with integrated pressure limiting for precise flow rate control for increased functional reliability

Integrates the following valve functions:

  • Direct acting bypass pressure compensator in spool design
  • Pressure limiting function for precise flow control

Combination valve: DWM12121ZD

  • Conventional solution

    HYDAC combination valve: DWM12121ZD

  • Special features:

    • Direct acting spool-type bypass pressure compensator with integrated load-sensing pressure limiting function
    • Available for different control pressure differences and with diverse options, e.g.:
      • with hydrodynamic damping or
      • internal constant draining of the load-sensing line.



    Design options:

    • With magnetically switchable pressure limiting – DWM12121ZMD
    • De-energised with high pressure and energised with low pressure – DWM12121ZMD(Z)

    ➔ All designs are also available with proportional remote control

⇒ Combination valve for outstanding stability across entire pressure and flow range and increased functional reliability thanks to integrated stroke limitation combined with reduced installation space, weight and costs.

Downloads

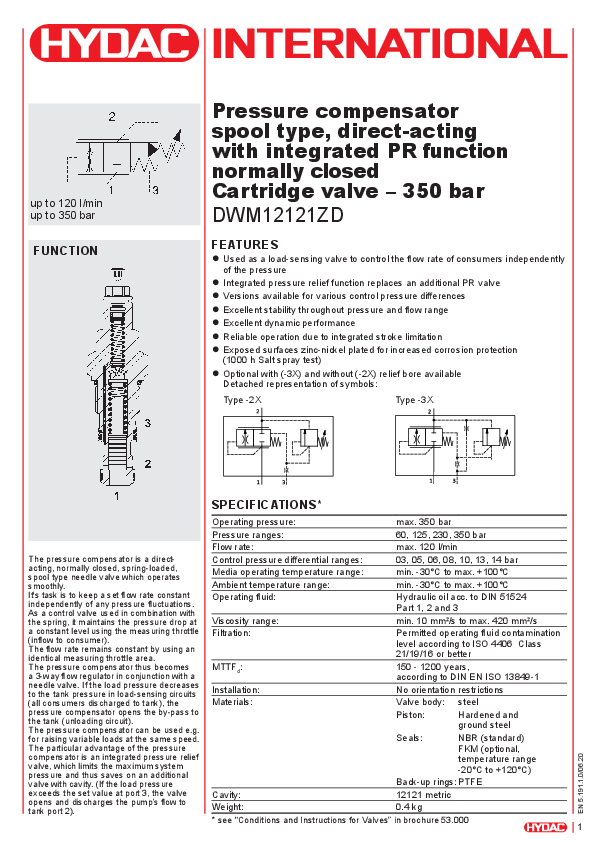

EN 5.191.1.0/06.20 Pressure compensator DWM12121ZD

file_download

pdf (418 KB)
